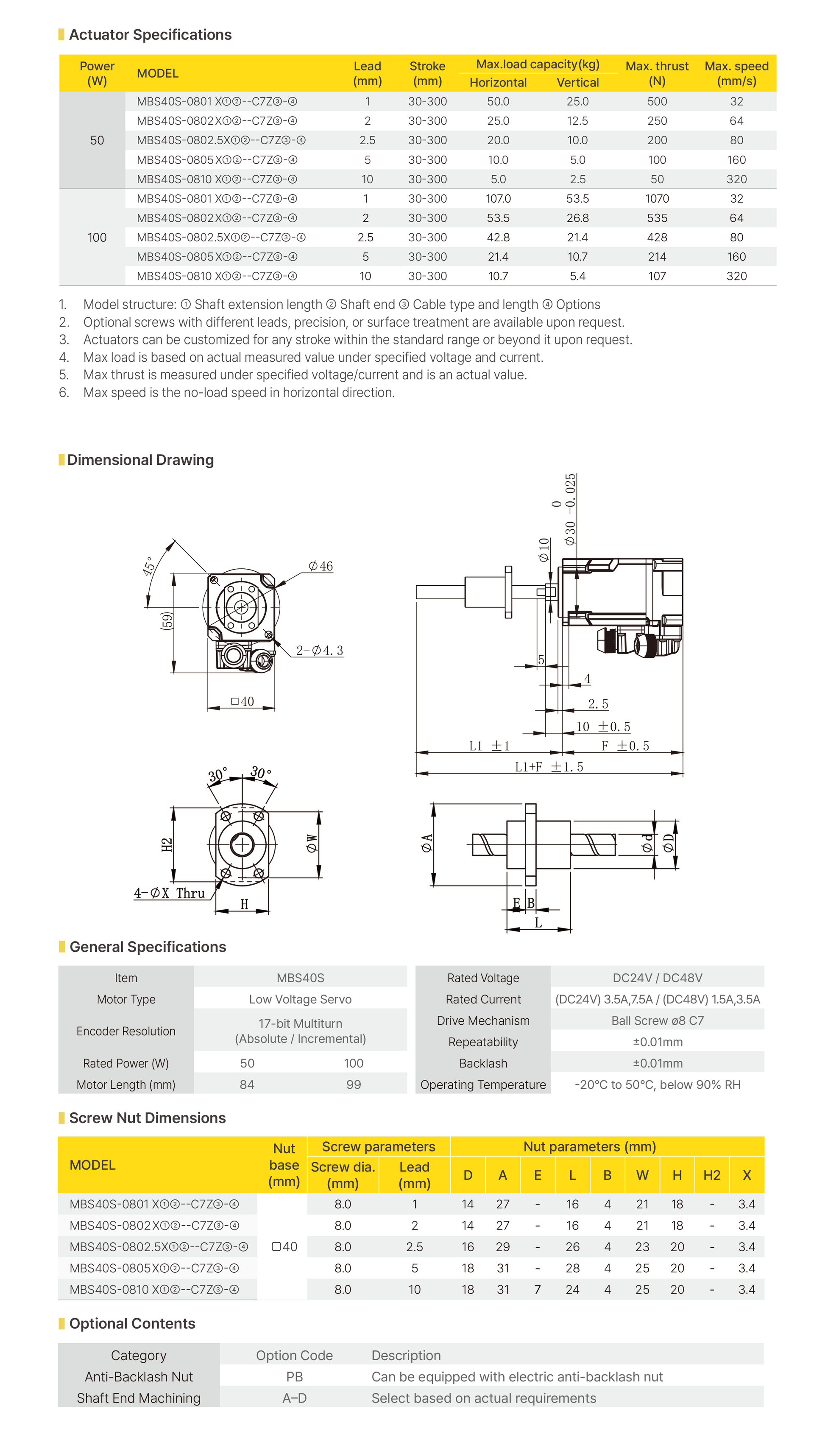

MBS-40S

17๋น„ํŠธ ๋ฉ€ํ‹ฐํ„ด ์—”์ฝ”๋” ํƒ‘์žฌ

์ €์ „์•• ์„œ๋ณด ์•ก์ถ”์—์ดํ„ฐ


์—”์ฝ”๋” ํ•ด์ƒ๋„: 17-bit Multiturn (Absolute / Incremental)

DC24V ๊ธฐ์ค€ 3.5/7.5A - DC48V ๊ธฐ์ค€ 1.5/3.5A

๋“œ๋ผ์ด๋ธŒ ๋ฉ”์ปค๋‹ˆ์ฆ˜: ๊ณ ์ •๋ฐ€ Ball Screw ø8 C7

์ •๋ฐ€ ์ œ์–ด๊ฐ€ ์š”๊ตฌ๋˜๋Š” ์ž๋™ํ™” ๋ฐ ๋กœ๋ด‡ ํŒ” ์• ํ”Œ๋ฆฌ์ผ€์ด์…˜์— ์ ํ•ฉ

MBS-40S

17๋น„ํŠธ ๋ฉ€ํ‹ฐํ„ด ์—”์ฝ”๋” ํƒ‘์žฌ ์ €์ „์•• ์„œ๋ณด ์•ก์ถ”์—์ดํ„ฐ

์—”์ฝ”๋” ํ•ด์ƒ๋„: 17-bit Multiturn (Absolute / Incremental)

DC24V ๊ธฐ์ค€ 3.5/7.5A - DC48V ๊ธฐ์ค€ 1.5/3.5A

๋“œ๋ผ์ด๋ธŒ ๋ฉ”์ปค๋‹ˆ์ฆ˜: ๊ณ ์ •๋ฐ€ Ball Screw ø8 C7

์ •๋ฐ€ ์ œ์–ด๊ฐ€ ์š”๊ตฌ๋˜๋Š” ์ž๋™ํ™” ๋ฐ ๋กœ๋ด‡ ํŒ” ์• ํ”Œ๋ฆฌ์ผ€์ด์…˜์— ์ ํ•ฉ

Speed-Thrust
MBS40S-50W_Curve
MBS40S-100W_Curve
NOTE
1. Test Conditions : DC24 V, 3.5A / DC48 V, 1.5A
Acceleration/Deceleration 30,000p/sยฒ, Test direction : Vertical

2. The thrust values above are measured and not guaranteed.
To ensure product life and reliability, it is recommended to allow at least 40% margin when selecting.
