MBS-40S

17๋น„ํŠธ ์•ฑ์†”๋ฃจํŠธ ์—”์ฝ”๋” ํƒ‘์žฌ

์ €์ „์•• ์„œ๋ณด ์•ก์ถ”์—์ดํ„ฐ




์—”์ฝ”๋” ํ•ด์ƒ๋„: 17-bit Absolute, Differential Output

DC24V ๊ธฐ์ค€ 10A / DC48V ๊ธฐ์ค€ 5A

๋“œ๋ผ์ด๋ธŒ ๋ฉ”์ปค๋‹ˆ์ฆ˜: Ball Screw ø8
๊ฐ€์ด๋“œ ๋ฐฉ์‹: Shaft + Linear Guide / Screw + Linear Guide / Shaft Only ์„ ํƒ ๊ฐ€๋Šฅ

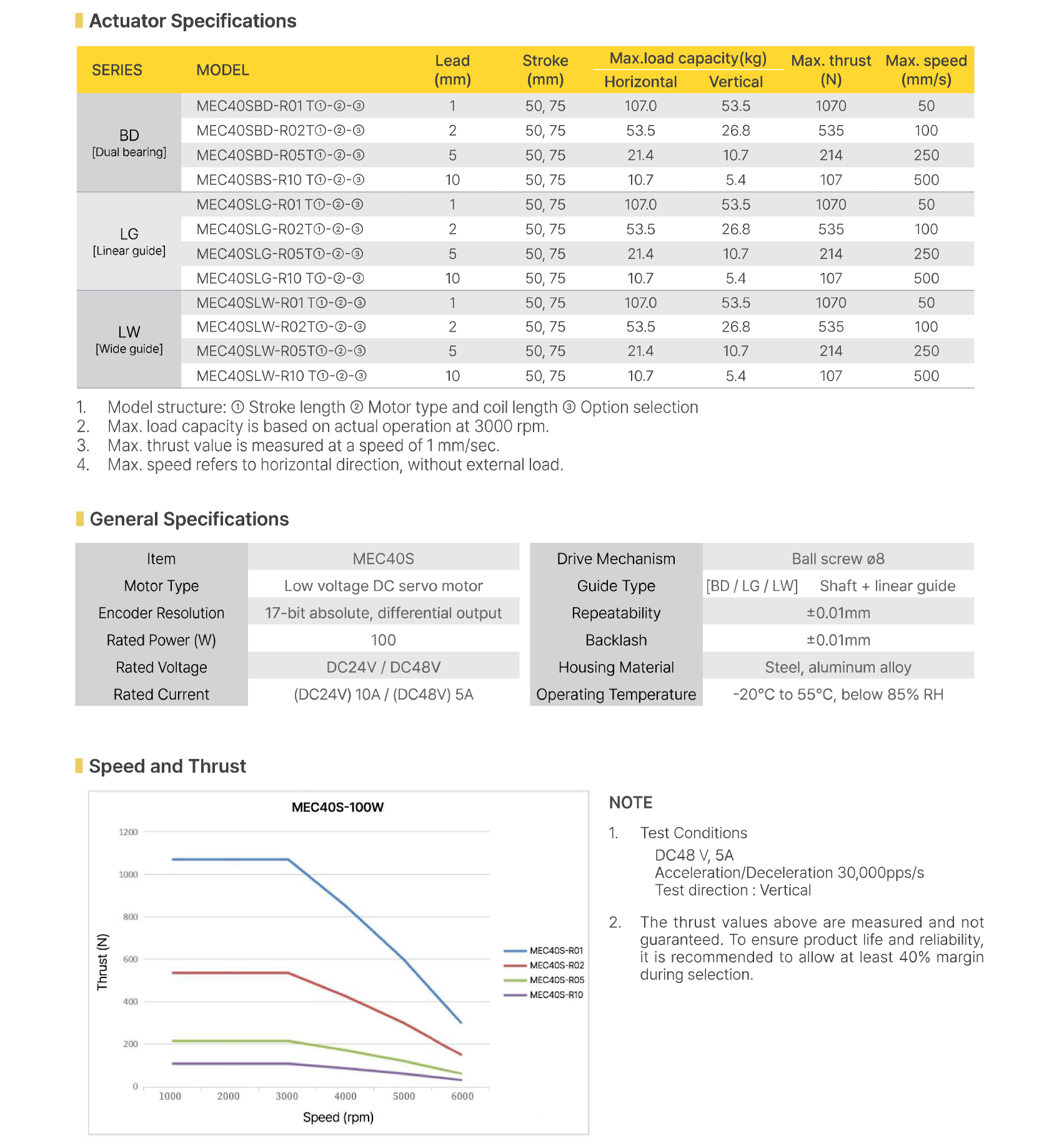

MEC-40S

17๋น„ํŠธ ์•ฑ์†”๋ฃจํŠธ ์—”์ฝ”๋” ํƒ‘์žฌ ์ €์ „์•• ์„œ๋ณด ์•ก์ถ”์—์ดํ„ฐ

์—”์ฝ”๋” ํ•ด์ƒ๋„: 17-bit Absolute, Differential Output

DC24V ๊ธฐ์ค€ 10A / DC48V ๊ธฐ์ค€ 5A

๋“œ๋ผ์ด๋ธŒ ๋ฉ”์ปค๋‹ˆ์ฆ˜: Ball Screw ø8
๊ฐ€์ด๋“œ ๋ฐฉ์‹: Shaft + Linear Guide / Screw + Linear Guide / Shaft Only ์„ ํƒ ๊ฐ€๋Šฅ

DINGS ์ œํ’ˆ ์ •๋ณด
Dimensional Drawings
BD ์‚ฌ์ง„
MEC40S - BD
LG ์‚ฌ์ง„
MEC40S - LG
LW ์‚ฌ์ง„
MEC40S - LW
