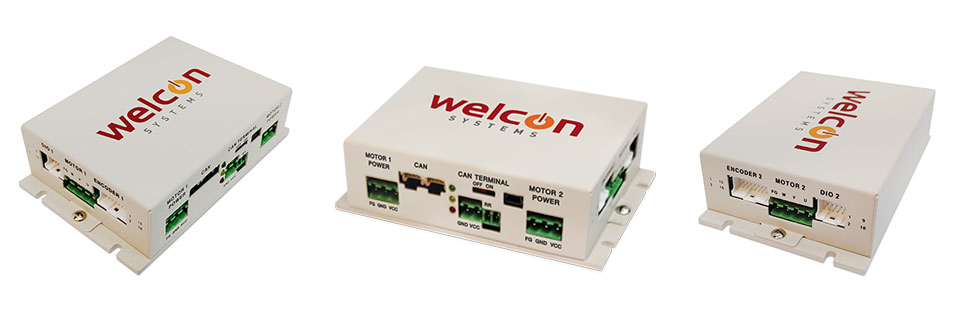

WE2A-D048/10-FS0007
DINGS’ Motors Applicable to Welcon Drive
DINGS’ Motors Applicable to Welcon Drive

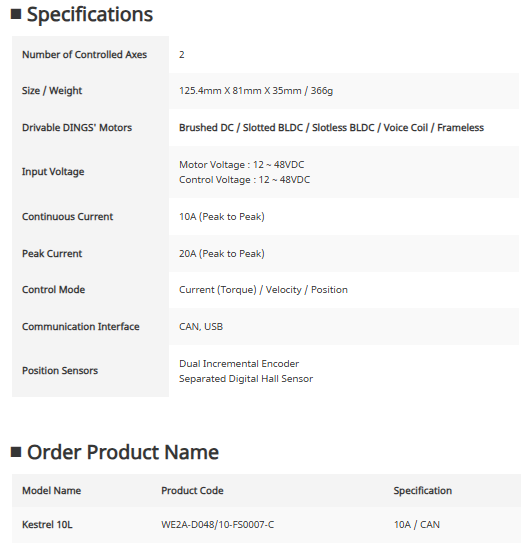

| Size / Weight | 125.4mm X 81mm X 35mm / 366g |
|---|---|

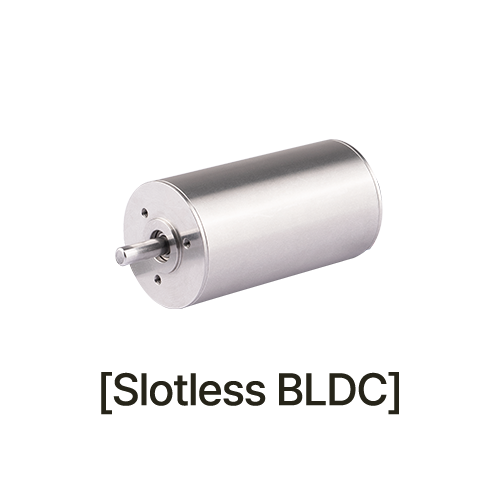

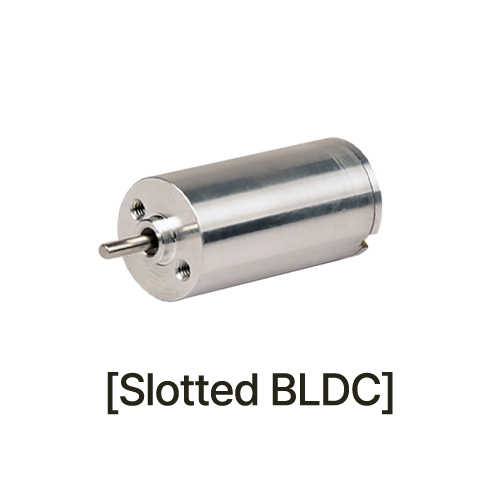

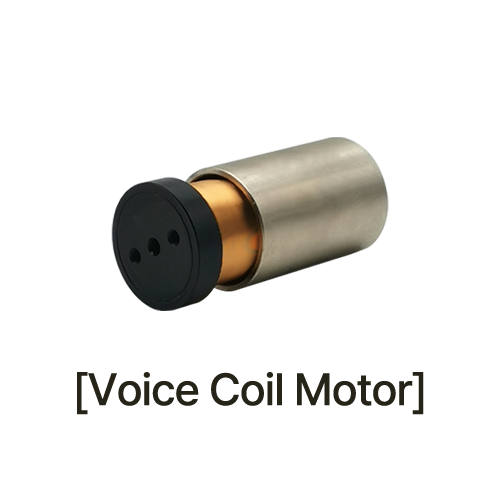

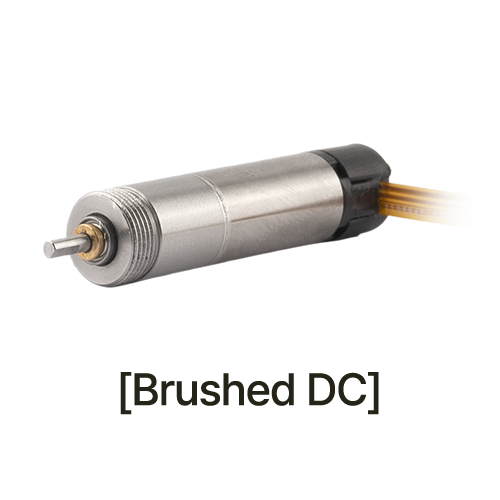

| Drivable DINGS' Motors | Brushed DC / Slotted BLDC / Slotless BLDC / Voice Coil / Frameless |
| Input Voltage | 12~48VDC (H/W Limit : 10 ~ 60VDC) |
| Continuous Current | 10A (Peak to Peak) |
| Peak Current | 20A (Peak to Peak) |
| Control Mode | Current (Torque) / Velocity / Position |
| Communication Interface | CAN, USB |
| Position Sensors | Dual Incremental Encoder Separated Digital Hall Sensor |

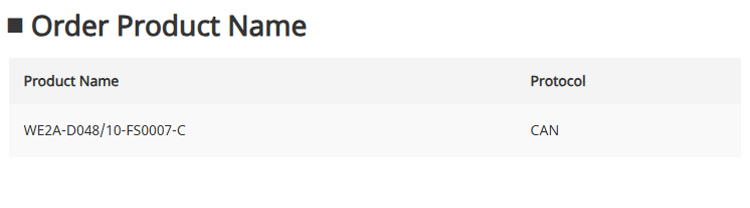

| Product Name | Protocol |
|---|---|
| WE2A-D048/10-FS0007-C | CAN |
