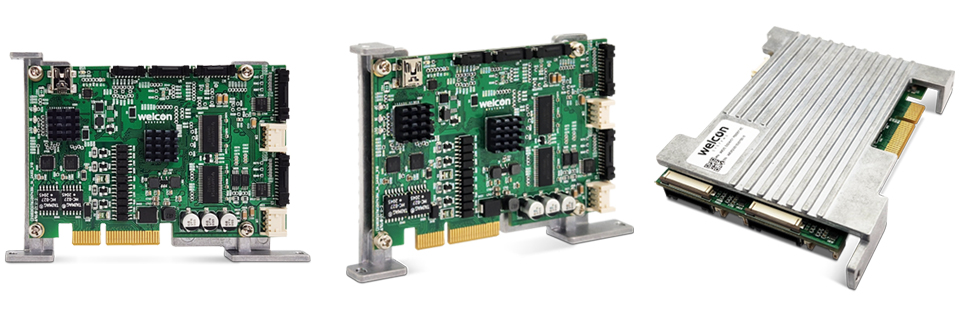

WE2S-D024/01-FS0057
DINGS’ Motors Applicable to Welcon Drive
DINGS’ Motors Applicable to Welcon Drive

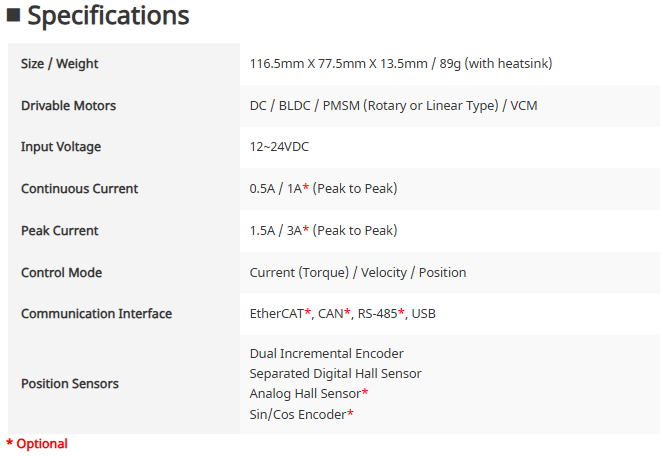

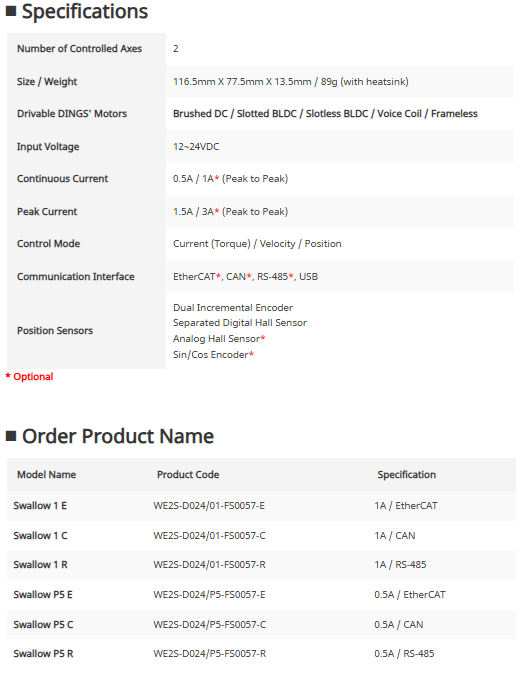

| Size / Weight | 116.5mm X 77.5mm X 13.5mm / 89g (with heatsink) |
|---|---|

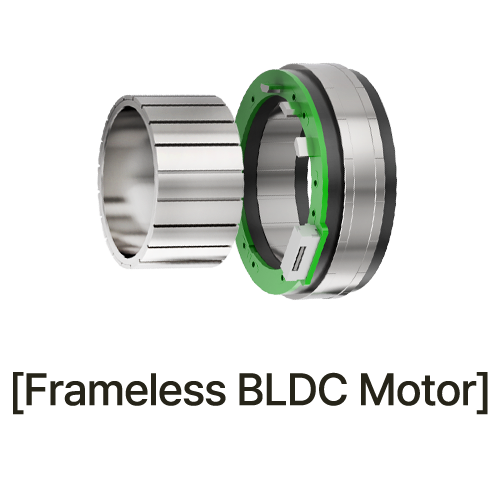

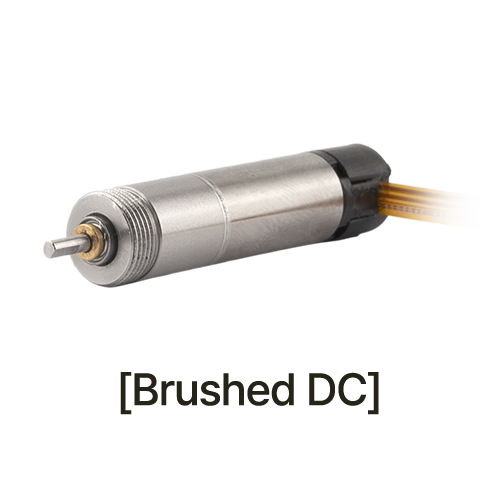

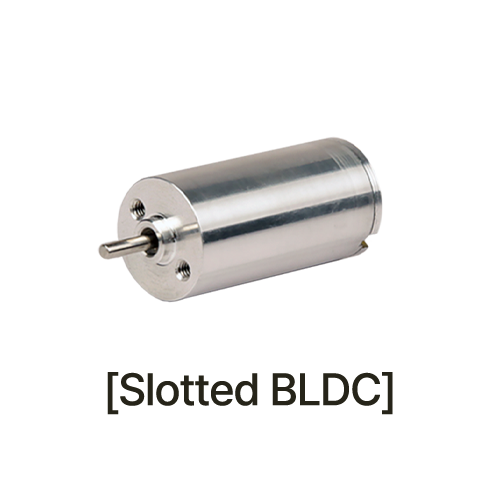

| Drivable DINGS' Motors | Brushed DC / Slotted BLDC / Slotless BLDC / Voice Coil / Frameless |
| Input Voltage | 12~24VDC |
| Continuous Current | 0.5A / 1A* (Peak to Peak) |
| Peak Current | 1.5A / 3A* (Peak to Peak) |
| Control Mode | Current (Torque) / Velocity / Position |
| Communication Interface | EtherCAT*, CAN*, RS-485*, USB |
| Position Sensors |
Dual Incremental Encoder Separated Digital Hall Sensor Analog Hall Sensor* Sin/Cos Encoder* |

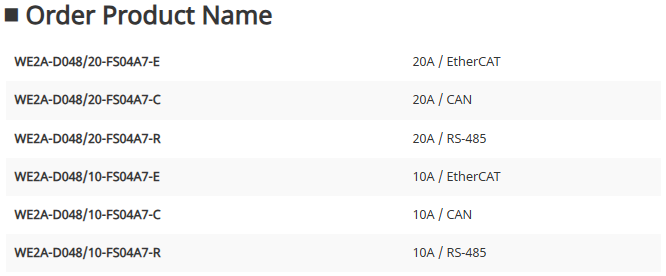

| WE2A-D048/20-FS04A7-E | 20A / EtherCAT |
| WE2A-D048/20-FS04A7-C | 20A / CAN |
| WE2A-D048/20-FS04A7-R | 20A / RS-485 |
| WE2A-D048/10-FS04A7-E | 10A / EtherCAT |
| WE2A-D048/10-FS04A7-C | 10A / CAN |
| WE2A-D048/10-FS04A7-R | 10A / RS-485 |
