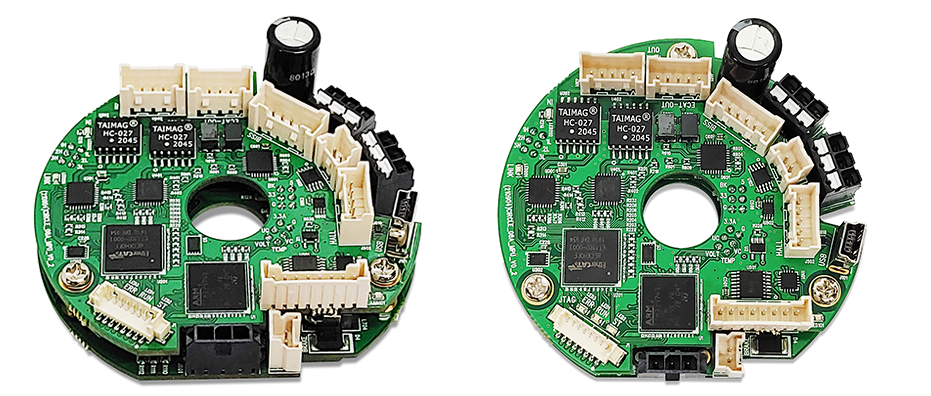

DINGS’ Motors Applicable to Welcon Drive
DINGS’ Motors Applicable to Welcon Drive

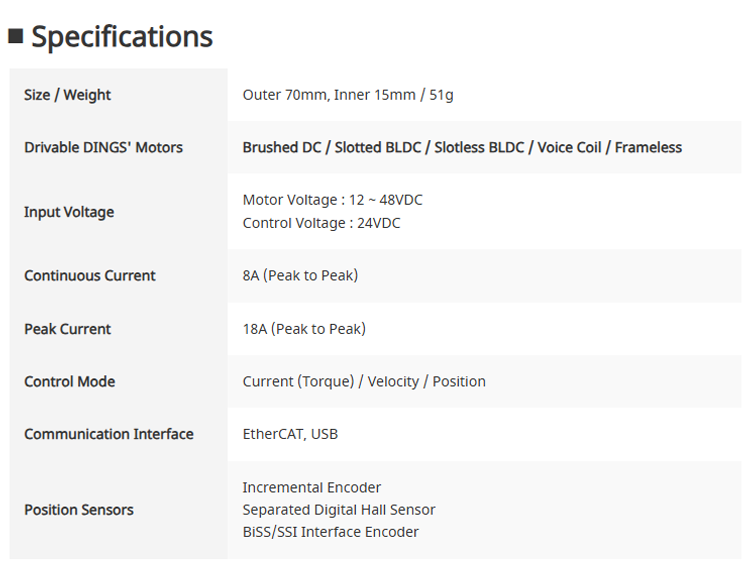

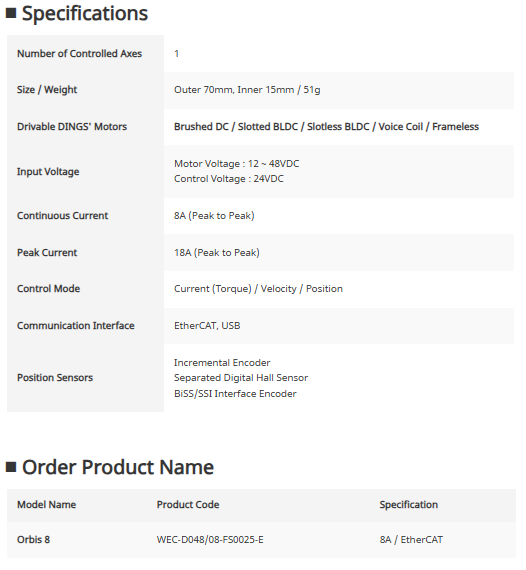

| Number of Controlled Axes | 1 |
|---|---|
| Size / Weight | Outer 70mm, Inner 15mm / 51g |
| Drivable DINGS' Motors | Brushed DC / Slotted BLDC / Slotless BLDC / Voice Coil / Frameless |
| Input Voltage | Motor Voltage : 12 ~ 48VDC Control Voltage : 24VDC |
| Continuous Current | 8A (Peak to Peak) |
| Peak Current | 18A (Peak to Peak) |
| Control Mode | Current (Torque) / Velocity / Position |
| Communication Interface | EtherCAT, USB |
| Position Sensors |
Incremental Encoder Separated Digital Hall Sensor BiSS/SSI Interface Encoder |

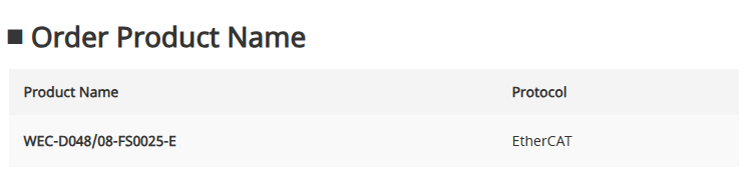

| Model Name | Product Code | Specification |
|---|---|---|
| Orbis 8 | WEC-D048/08-FS0025-E | 8A / EtherCAT |
