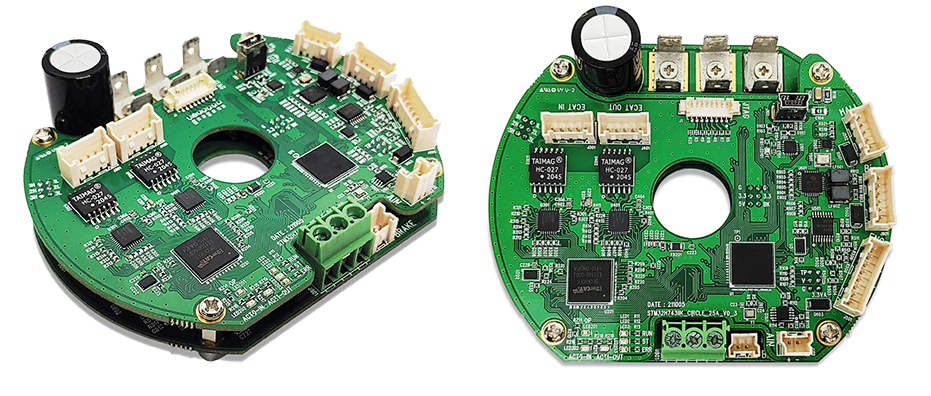

WEC-D048/25-FS0025-E
DINGS’ Motors Applicable to Welcon Drive
DINGS’ Motors Applicable to Welcon Drive

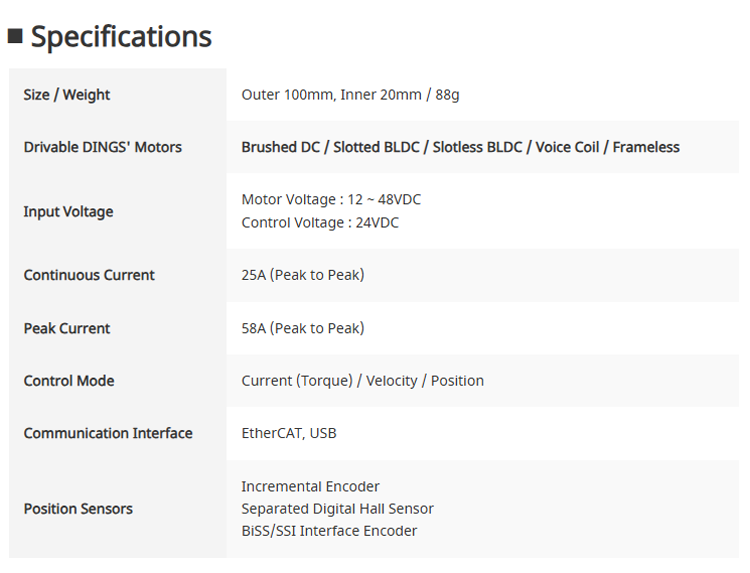

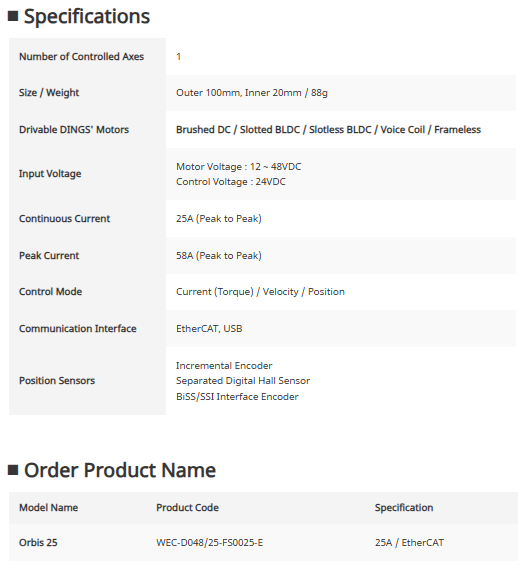

| Size / Weight | Outer 100mm, Inner 20mm / 88g |
|---|---|
| Drivable DINGS' Motors | Brushed DC / Slotted BLDC / Slotless BLDC / Voice Coil / Frameless |
| Input Voltage | Motor Voltage : 12 ~ 48VDC Control Voltage : 24VDC |
| Continuous Current | 25A (Peak to Peak) |
| Peak Current | 58A (Peak to Peak) |
| Control Mode | Current (Torque) / Velocity / Position |
| Communication Interface | EtherCAT, USB |
| Position Sensors |
Incremental Encoder Separated Digital Hall Sensor BiSS/SSI Interface Encoder |

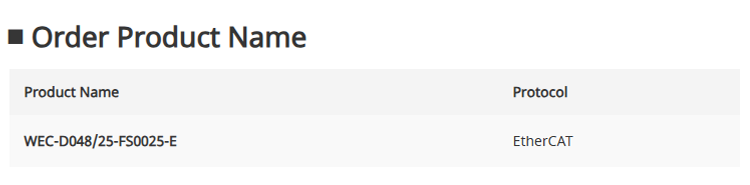

| Product Name | Protocol |
|---|---|
| WEC-D048/25-FS0025-E | EtherCAT |
