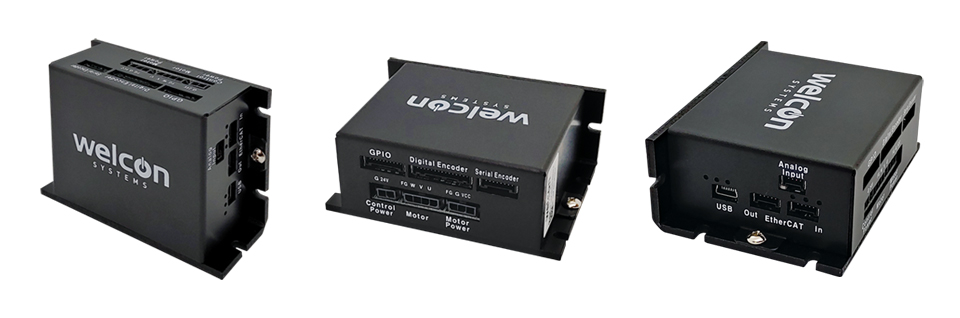

WEM-D310/02-FS00A5
DINGS’ Motors Applicable to Welcon Drive
DINGS’ Motors Applicable to Welcon Drive

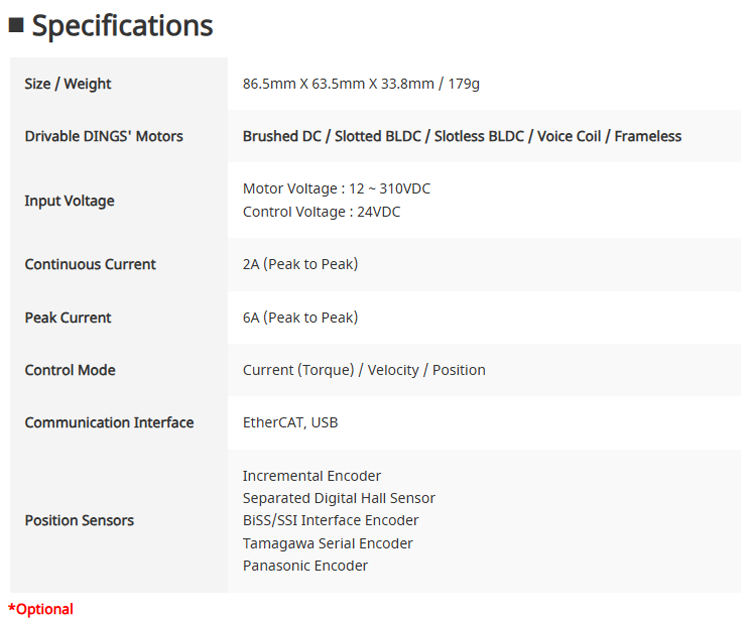

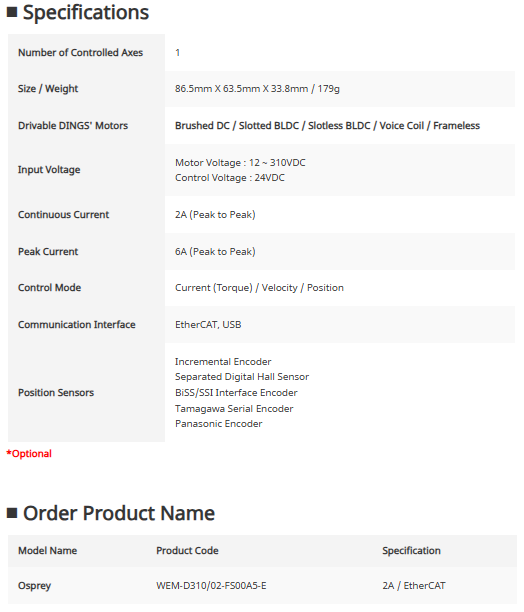

| Size / Weight | 86.5mm X 63.5mm X 33.8mm / 179g |
|---|---|
| Drivable DINGS' Motors | Brushed DC / Slotted BLDC / Slotless BLDC / Voice Coil / Frameless |
| Input Voltage |
Motor Voltage : 12 ~ 310VDC Control Voltage : 24VDC |
| Continuous Current | 2A (Peak to Peak) |
| Peak Current | 6A (Peak to Peak) |
| Control Mode | Current (Torque) / Velocity / Position |
| Communication Interface | EtherCAT, USB |
| Position Sensors |
Incremental Encoder Separated Digital Hall Sensor BiSS/SSI Interface Encoder Tamagawa Serial Encoder Panasonic Encoder |

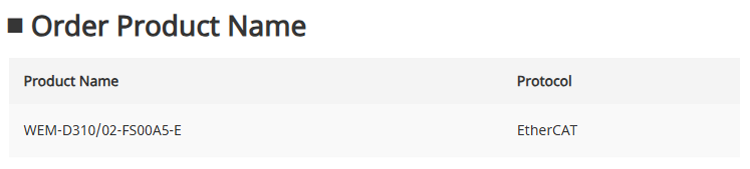

| Product Name | Protocol |
|---|---|
| WEM-D310/02-FS00A5-E | EtherCAT |
