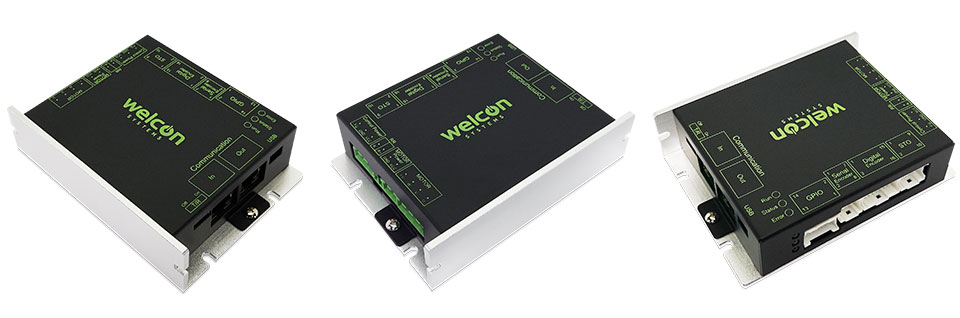

WER-D04810-FS04A7
DINGS’ Motors Applicable to Welcon Drive
DINGS’ Motors Applicable to Welcon Drive

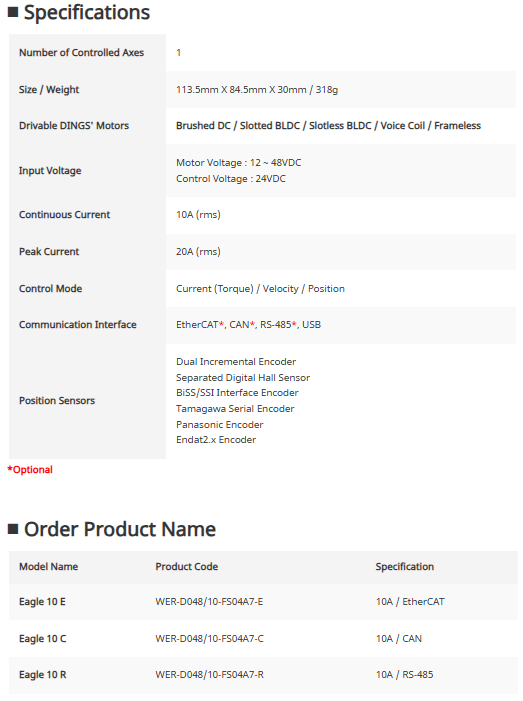

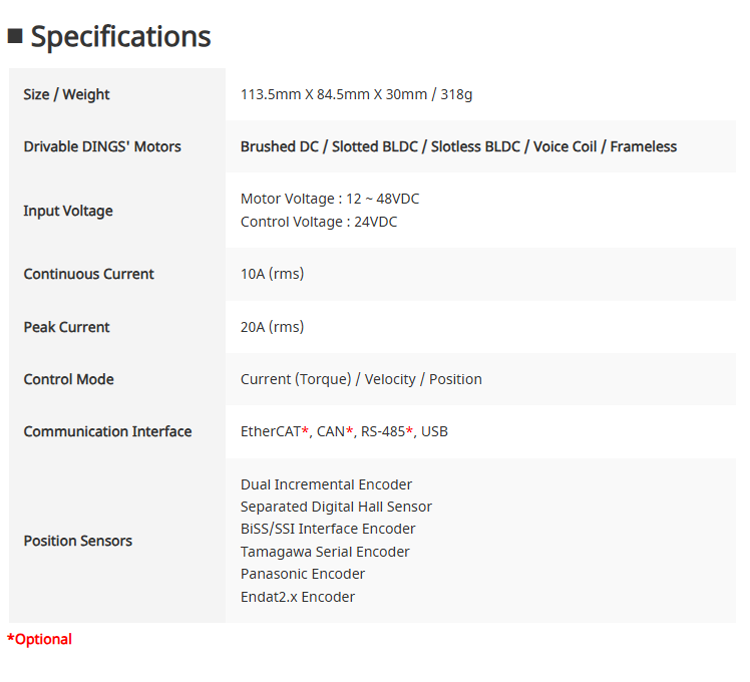

| Size / Weight | 113.5mm X 84.5mm X 30mm / 318g |
|---|---|
| Drivable DINGS' Motors | Brushed DC / Slotted BLDC / Slotless BLDC / Voice Coil / Frameless |
| Input Voltage |
Motor Voltage : 12 ~ 48VDC Control Voltage : 24VDC |
| Continuous Current | 10A (rms) |
| Peak Current | 20A (rms) |
| Control Mode | Current (Torque) / Velocity / Position |
| Communication Interface | EtherCAT*, CAN*, RS-485*, USB |
| Position Sensors |
Dual Incremental Encoder Separated Digital Hall Sensor BiSS/SSI Interface Encoder Tamagawa Serial Encoder Panasonic Encoder Endat2.x Encoder |

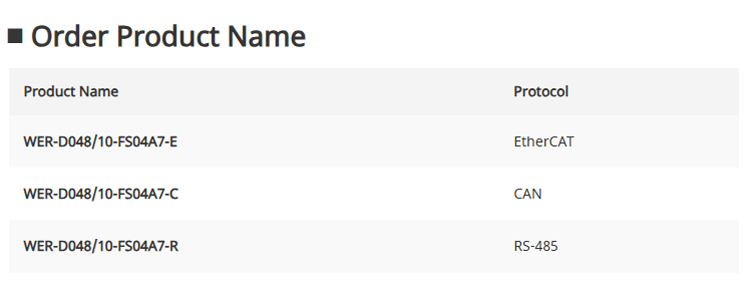

| Product Name | Protocol |
|---|---|
| WER-D048/10-FS04A7-E | EtherCAT |
| WER-D048/10-FS04A7-C | CAN |
| WER-D048/10-FS04A7-R | RS-485 |
