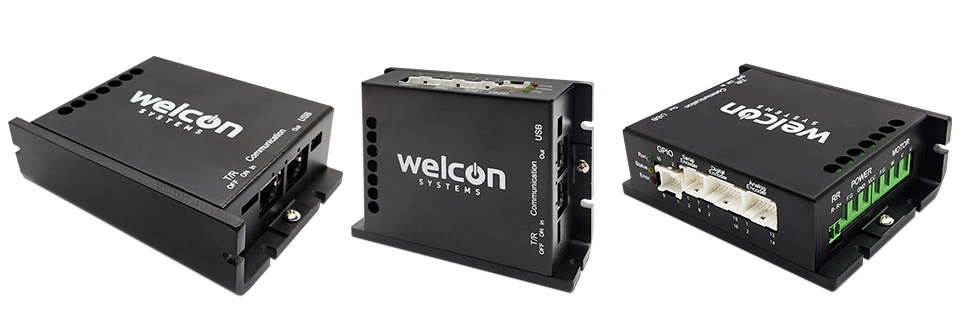

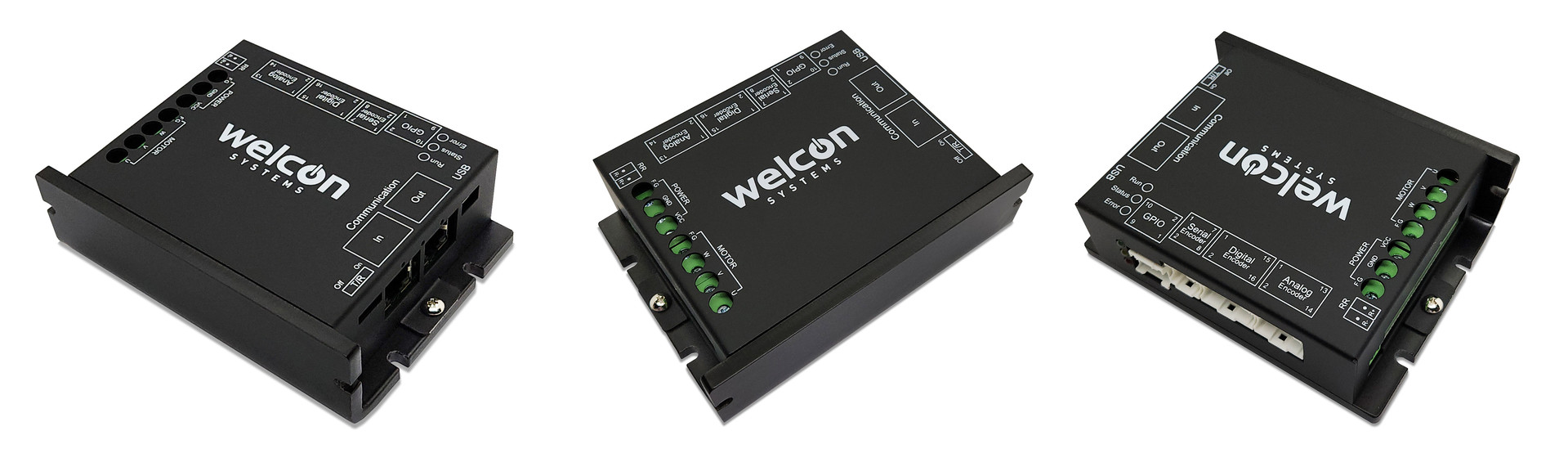

WER-D048/20-FS04F7
DINGS’ Motors Applicable to Welcon Drive
DINGS’ Motors Applicable to Welcon Drive

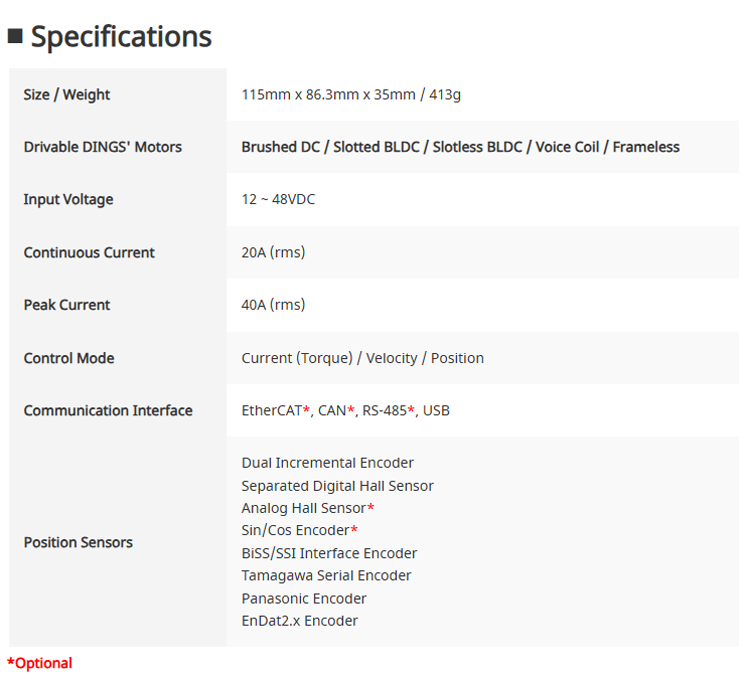

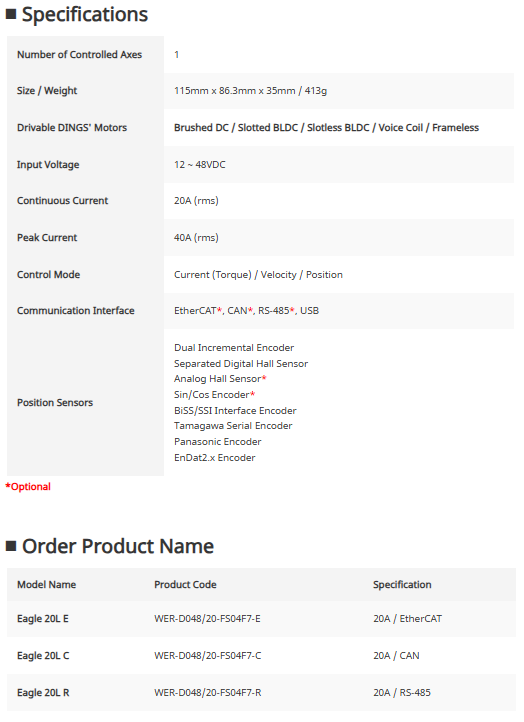

| Size / Weight | 115mm x 86.3mm x 35mm / 413g |
|---|---|
| Drivable DINGS' Motors | Brushed DC / Slotted BLDC / Slotless BLDC / Voice Coil / Frameless |
| Input Voltage | 12 ~ 48VDC |
| Continuous Current | 20A (rms) |
| Peak Current | 40A (rms) |
| Control Mode | Current (Torque) / Velocity / Position |
| Communication Interface | EtherCAT*, CAN*, RS-485*, USB |
| Position Sensors |
Dual Incremental Encoder Separated Digital Hall Sensor Analog Hall Sensor* Sin/Cos Encoder* BiSS/SSI Interface Encoder Tamagawa Serial Encoder Panasonic Encoder EnDat2.x Encoder |

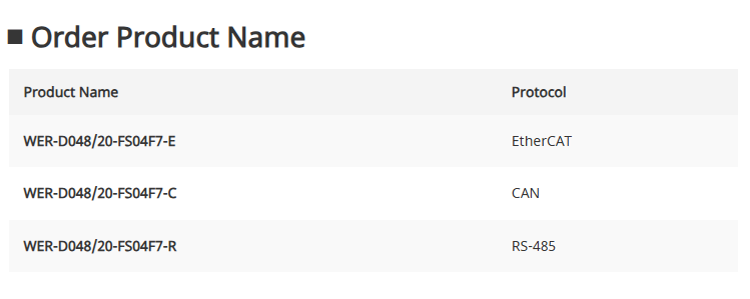

| Product Name | Protocol |
|---|---|
| WER-D048/20-FS04F7-E | EtherCAT |
| WER-D048/20-FS04F7-C | CAN |
| WER-D048/20-FS04F7-R | RS-485 |
